Tata Steel & Dongbu coil
Up to 30 years warranty on polyester finishes
Cut to length in Cappoquin

Anti-Condensation Cladding

Less Dripping On Cold Mornings

A DRIPSTOP fleece on the underside of our roofing sheets. It soaks up condensation and lets it dry out, which helps reduce dripping in agricultural and industrial buildings.

Inside a steel shed clad in box profile

The anti-condensation backing is ordered with the sheets and comes cut to your lengths.

ANTI-CONDENSATION

A non-drip fleece on the underside of the sheet

On a cold morning, condensation forms on the underside of a steel roof and drips on whatever is below. Our anti-condensation backing is a non-drip fleece applied to the underside of the roofing sheet. The fleece we use is DRIPSTOP by Freudenberg. It absorbs the condensation and lets the moisture evaporate, which helps reduce dripping in agricultural and industrial buildings.

  • DRIPSTOP fleece by Freudenberg on the underside of the sheet
  • On suitable box profile and corrugated roofing sheets
  • Goes with different steel finishes and colours
  • Ordered with your sheets, cut to your lengths

The fleece needs suitable ventilation in the building to work. Tell us about the building when you order, and see our ventilated cladding.

See also: MW5 box profile, 13.5/3 corrugated and flashings. Send the lengths on the quote form and we come back with a price.

HOW IT WORKS

What the fleece does on a cold morning

The same roof without a fleece and with one, step by step. Tap a step to hold it.

How a DRIPSTOP anti-condensation fleece works, before and after. Without a fleece: warm, moist air from inside rises to the cold steel roof, condensation forms on the underside and drips onto the stock, feed or machinery below. With a DRIPSTOP fleece on the underside of the same sheet: the fleece soaks up the droplets and holds them, which helps reduce dripping; as the roof warms, the moisture dries out and ventilation carries it away. The building needs suitable ventilation for the fleece to work.

DRIPSTOP by Freudenberg (dripstop.net) is the fleece we use. Ventilation matters. The building needs suitable ventilation for the fleece to work. It helps reduce condensation dripping; it does not replace a ventilated roof.

SPECIFICATION

Anti-condensation backing

What the backing is, what it goes on and what it needs.

The underside of a steel roofWhere it works
Inside a steel shed: the underside of a box profile roof on a red steel frame
BackingNon-drip fleece, applied to the underside of the sheet
FleeceDRIPSTOP by Freudenberg
How it worksAbsorbs condensation and lets the moisture evaporate
SheetsSuitable box profile and corrugated roofing sheets
FinishesGoes with different steel finishes and colours
UsesAgricultural and industrial buildings
NeedsSuitable ventilation in the building
LengthsCut to length

Need the full spec? Datasheets, profile drawings and warranty documents are available on request. Ask on the quote form or give us a ring.

ALSO FROM THE FACTORY

Everything else for the roof, from one supplier

A stack of Juniper Green box profile sheets
Agri cladding

FarmShield Plus

Our best seller for agricultural buildings: 0.6mm steel in Juniper Green, Slate Grey and Slate Blue.

A box profile sheet coming off a roll former
Box profile

MW5 box profile

1000mm cover for roofs and walls, in PolyShield, Plastipro or FarmShield Plus. Cut to your lengths.

A white 13.5/3 corrugated roof
Corrugated

13.5/3 corrugated

The traditional corrugated sheet, plus curved and cocktailed sheets.

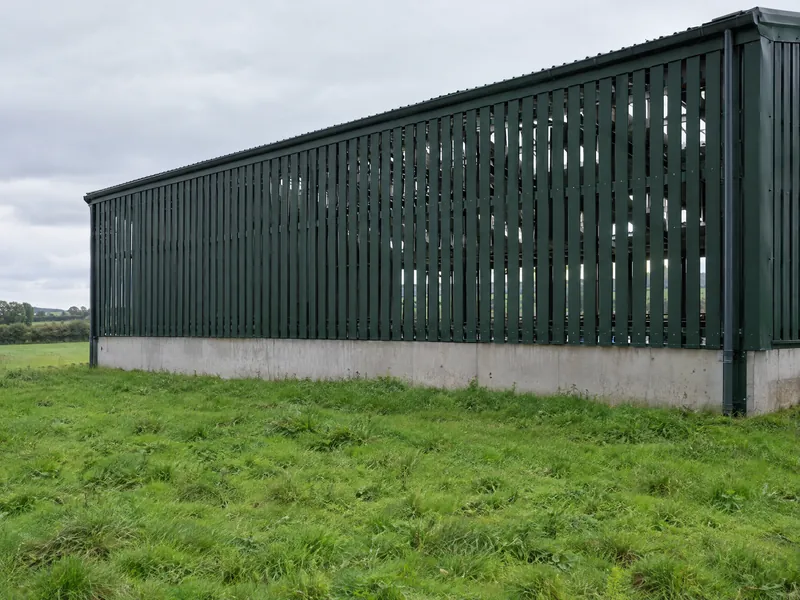

Spaced ventilated cladding on a shed wall
Ventilated

Ventilated cladding

Box profile supplied with venting options for airflow.

Folded steel flashings
Folded in Cappoquin

Flashings and folded steel

Made to your sizes up to 6.4 metres on our CNC press brake, colour-matched to your sheets.
