BOX PROFILE
Roof and wall sheeting rolled in Cappoquin
We put a lot of engineering into our MW5 profile so the joint is clean inside and out. It goes on roofs and walls alike. Choose the steel, 0.5, 0.6 or 0.7mm depending on specification, and the cladding: PolyShield, our premium polyester; Plastipro, our leather grain plastisol; or FarmShield Plus for agricultural buildings. Every sheet leaves the factory cut to your lengths.
1000mm effective cover width- 0.5, 0.6 and 0.7mm steel, depending on specification
- PolyShield polyester and Plastipro plastisol for commercial and residential buildings
- FarmShield Plus for agricultural buildings
- Anti-condensation backing available
- Clear polycarbonate lights made to match the profile
See also: colour charts, anti-condensation backing and flashings. Send the lengths on the quote form and we come back with a price.
087 164 8562
Sales
087 657 1160
Sales
TECHNICAL DATA
MW5 box profile specification
The profile in section and what goes on the order. Below it: FarmShield Plus, our agricultural cladding, on the MW5 profile, layer by layer.

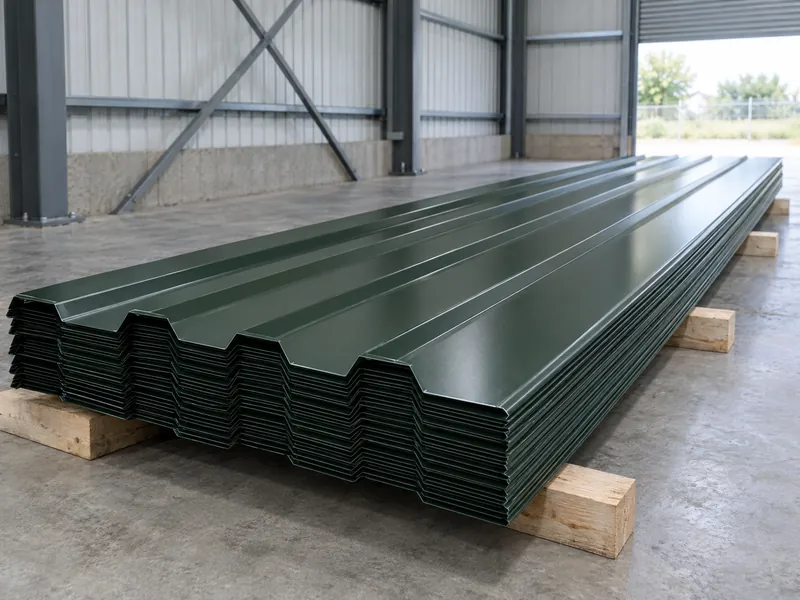

MW5 box profile
Cross-section- Cover width
- 1,000 mm
- Gauges
- 0.5 mm0.6 mm0.7 mm

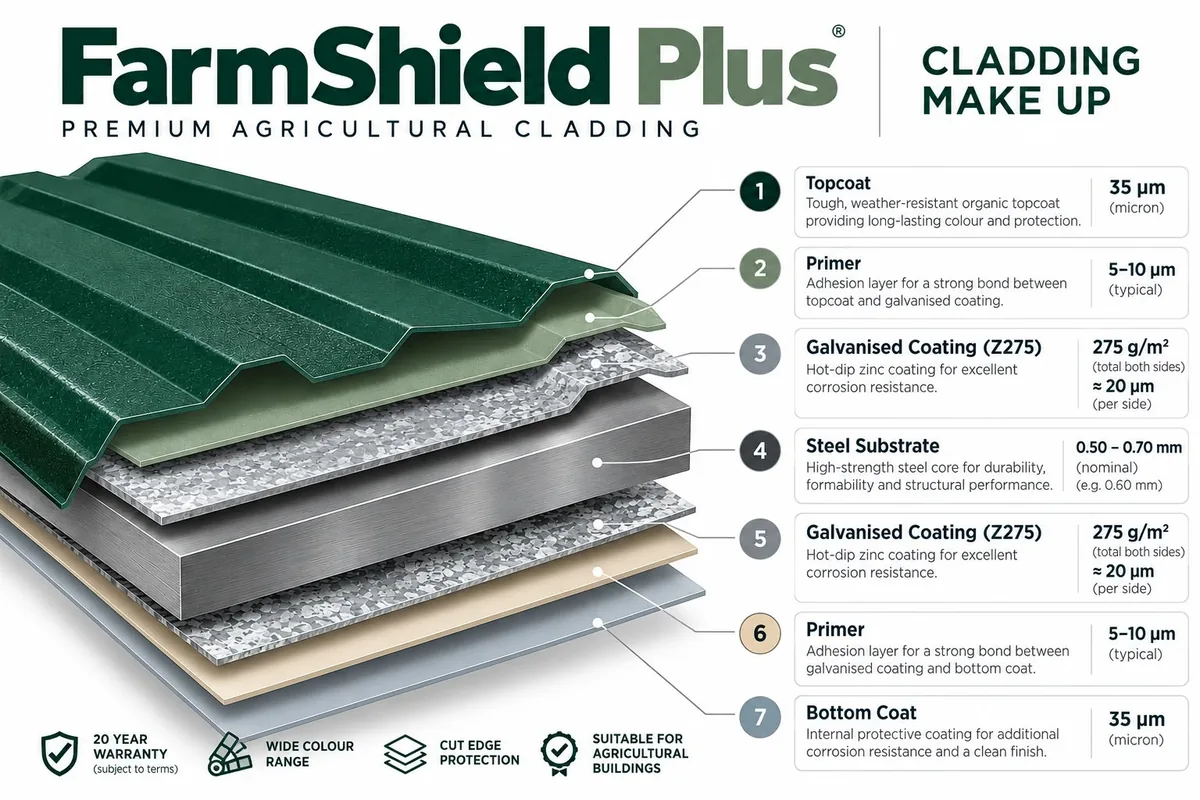

FarmShield Plus on MW5 box profileCladding make-up
| Cover width | 1000mm effective |
|---|---|
| Steel | 0.5, 0.6 or 0.7mm, depending on specification |
| Claddings | PolyShield polyester, Plastipro leather grain plastisol, FarmShield Plus agricultural |
| Colours | A range of colours; FarmShield Plus in Juniper Green, Slate Grey and Slate Blue |
| Lengths | Cut to length |
| Uses | Roofing and side cladding |
| Options | Anti-condensation backing; clear polycarbonate lights to match |
| Profile drawing | Full drawing with dimensions on request |
Need the full spec? Datasheets, profile drawings and warranty documents are available on request. Ask on the quote form or give us a ring.
ANTI-CONDENSATION
Stop condensation dripping off the roof

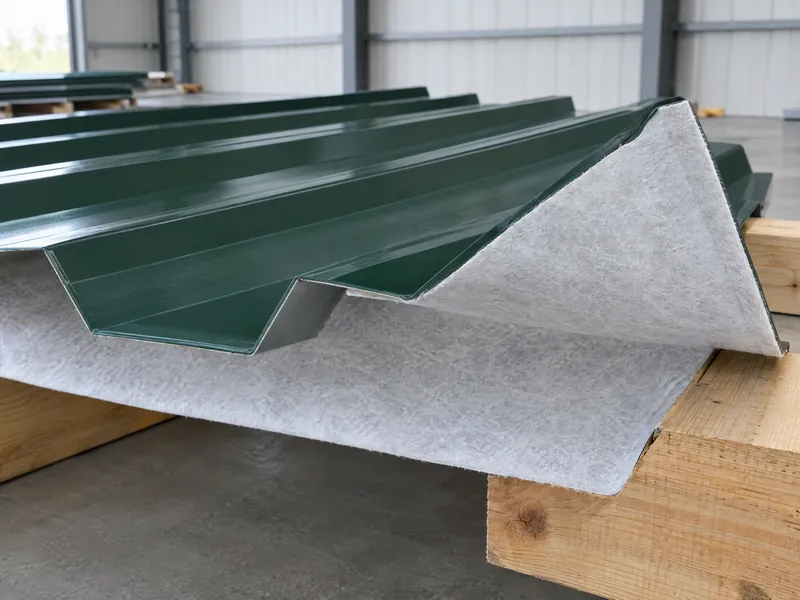

MW5 roofing sheets can be ordered with a DRIPSTOP fleece on the underside. Here is how it works. More on the anti-condensation page.
DRIPSTOP by Freudenberg (dripstop.net) is the fleece we use. Ventilation matters. The building needs suitable ventilation for the fleece to work. It helps reduce condensation dripping; it does not replace a ventilated roof.
ALSO FROM THE FACTORY
Everything else for the roof, from one supplier
Folded in Cappoquin

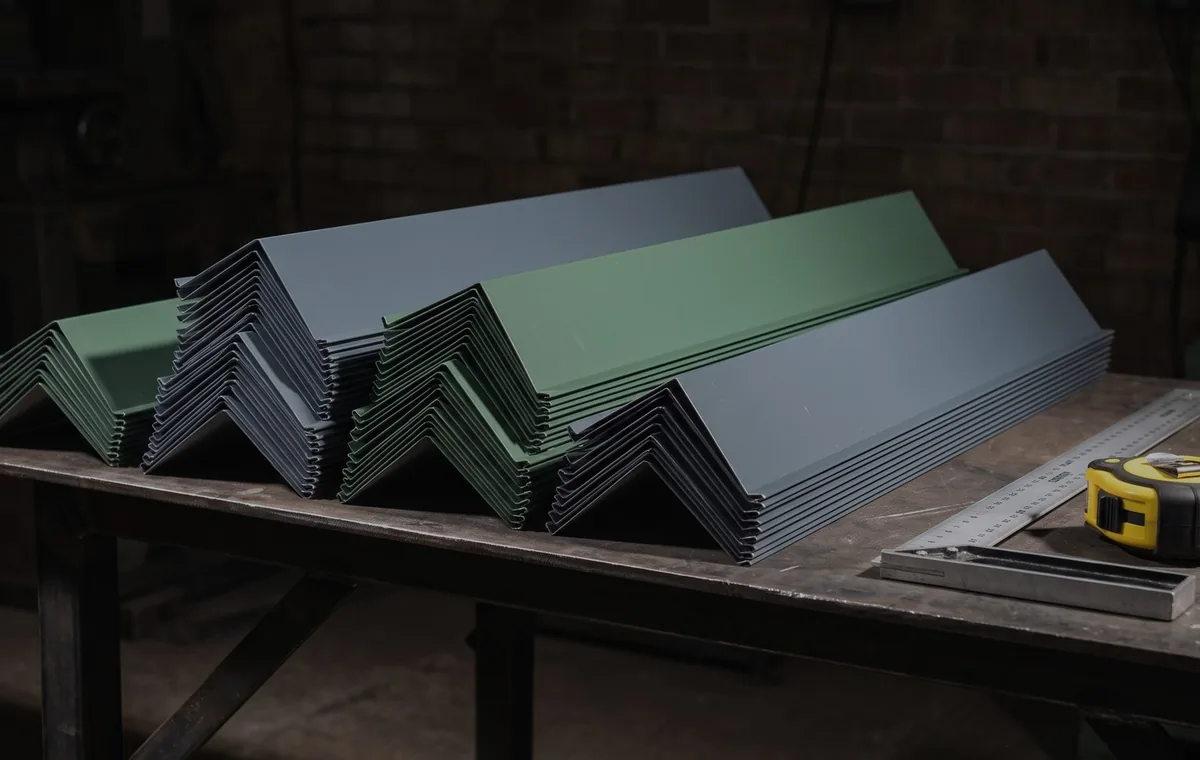

Flashings and folded steel
Made to your sizes up to 6.4 metres on our CNC press brake, colour-matched to your sheets.
Agri cladding
FarmShield Plus
Our best seller for agricultural buildings: 0.6mm steel in Juniper Green, Slate Grey and Slate Blue.
Commercial and residential
Plastipro leather grain
Plastisol cladding with a leather grain finish, for commercial and residential buildings.
Anti-condensation
Anti-condensation cladding
A DRIPSTOP fleece on the underside of the sheet to help stop condensation dripping.
WHAT CUSTOMERS SAY
What our customers say on Google
Great service and good quality. The lads looked after me and made up custom trim pieces to my measurements. Would definitely recommend, and will get anything else I need from them in the future.
Lovely family business and dead easy to deal with
Pleasure to deal with. Top quality products and great value for money 👌
GET A PRICE
Send us the lengths, we price the job
Fill in the form, or ring and read them out. Our sales team is on the phones.
- Sales087 164 8562
- Sales087 657 1160
- Emailsales@southernprofiles.ie
- FactoryCappoquin, Co. Waterford
What to send us
- Lengths and quantities
- Profile and gauge
- Colour and finish
- Flashings, clearlights and fixings
Your details and the job
