CORRUGATED
The traditional profile, rolled to the same standard
We take the same care over our 13.5/3 corrugated as over the MW5: a 990mm effective cover for roofs and walls, in 0.5, 0.6 or 0.7mm steel depending on specification, with polyester, PVC/plastisol or agricultural coatings including FarmShield Plus.
990mm effective cover width- 0.5, 0.6 and 0.7mm steel, depending on specification
- Polyester, PVC/plastisol and agricultural coatings
- Polycarbonate rooflights available
- Anti-condensation backing available
- Traditional round roof sheets and cocktailed sheets
See also: colour charts, anti-condensation backing and flashings. Send the lengths on the quote form and we come back with a price.
087 164 8562
Sales
087 657 1160
Sales

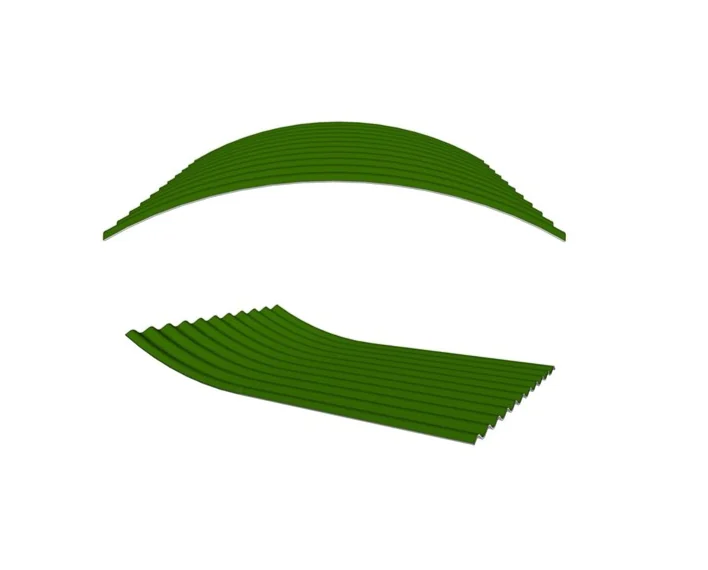

CURVED & COCKTAILED
Curved and cocktailed sheets
For round roofs and curved buildings we supply traditional round roof sheets and cocktailed sheets in the 13.5/3 profile, in the same finishes and gauges as the flat sheet.
Also from the factory:
Traditional round roof sheets
Cocktailed sheets
Same finishes, gauges and colours
Matching polycarbonate clearlights
Cut to order
Flashings, gutters and fixings in stock
TECHNICAL DATA
13.5/3 corrugated specification
The profile in section and what goes on the order. Below it: FarmShield Plus, our agricultural cladding, on the 13.5/3 profile, layer by layer.
13.5/3 corrugated
Cross-section- Cover width
- 990 mm
- Gauges
- 0.5 mm0.6 mm0.7 mm

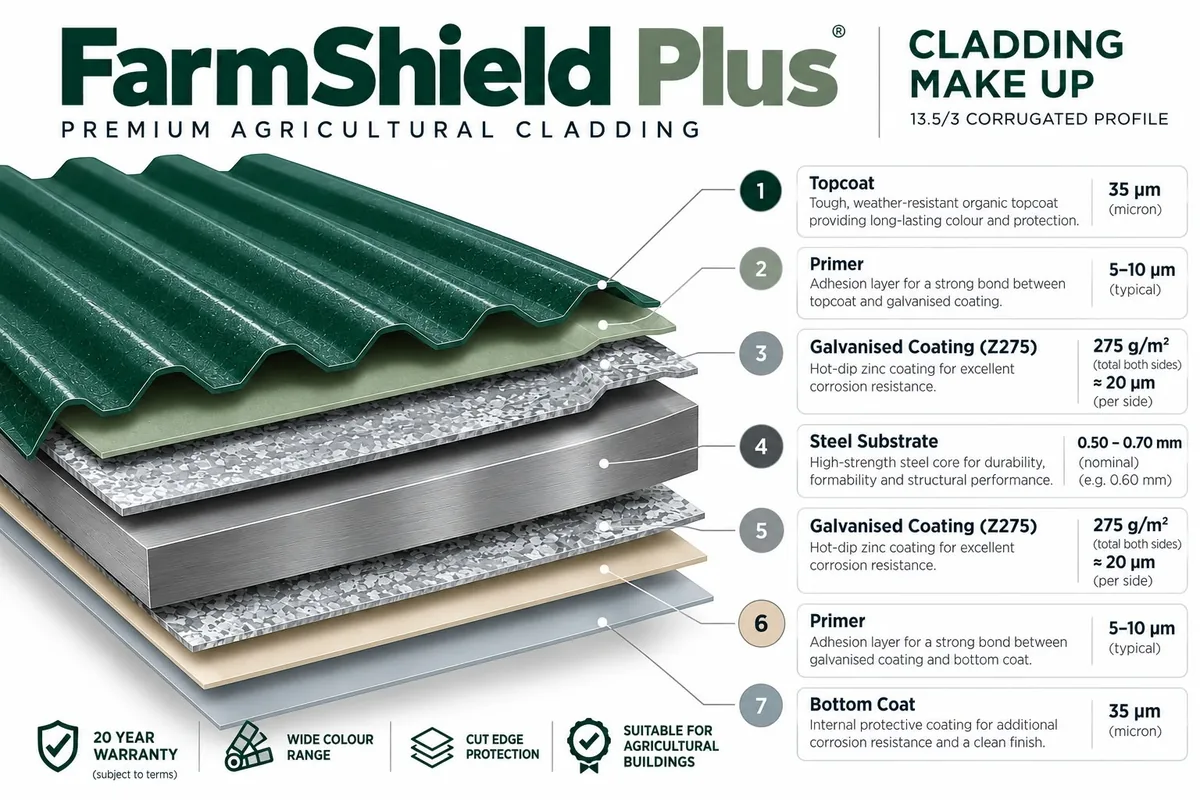

FarmShield Plus on 13.5/3 corrugatedCladding make-up
| Cover width | 990mm effective |
|---|---|
| Steel | 0.5, 0.6 or 0.7mm, depending on specification |
| Coatings | Polyester, PVC/plastisol and agricultural coatings, including FarmShield Plus |
| Colours | A range of colours; FarmShield Plus in Juniper Green, Slate Grey and Slate Blue |
| Lengths | Cut to length |
| Uses | Roofing and side cladding |
| Options | Polycarbonate rooflights; anti-condensation backing |
| Also | Traditional round roof sheets and cocktailed sheets |
| Profile drawing | Full drawing with dimensions on request |
Need the full spec? Datasheets, profile drawings and warranty documents are available on request. Ask on the quote form or give us a ring.
ANTI-CONDENSATION
Stop condensation dripping off the roof
13.5/3 roofing sheets can be ordered with a DRIPSTOP fleece on the underside. Here is how it works. More on the anti-condensation page.
DRIPSTOP by Freudenberg (dripstop.net) is the fleece we use. Ventilation matters. The building needs suitable ventilation for the fleece to work. It helps reduce condensation dripping; it does not replace a ventilated roof.
ALSO FROM THE FACTORY
Everything else for the roof, from one supplier
Folded in Cappoquin
Flashings and folded steel
Made to your sizes up to 6.4 metres on our CNC press brake, colour-matched to your sheets.
Box profile
MW5 box profile
1000mm cover for roofs and walls, in PolyShield, Plastipro or FarmShield Plus. Cut to your lengths.
Agri cladding

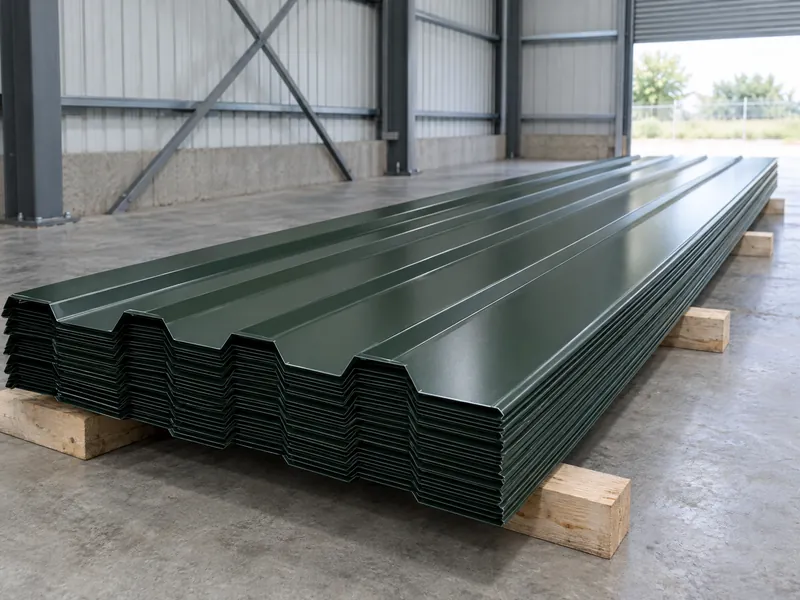

FarmShield Plus
Our best seller for agricultural buildings: 0.6mm steel in Juniper Green, Slate Grey and Slate Blue.
Commercial and residential
Plastipro leather grain
Plastisol cladding with a leather grain finish, for commercial and residential buildings.
Anti-condensation
Anti-condensation cladding
A DRIPSTOP fleece on the underside of the sheet to help stop condensation dripping.
